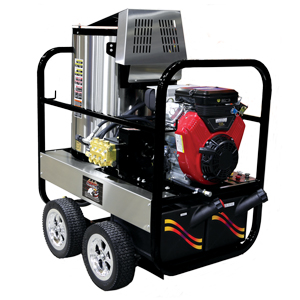

41 Series HE Models

Portable Fixed Wheel



41 Series Features:

  • • Unique Highly Mobile Heavy Duty Welded Tube Frame Design
  • • Frame Integrated Cord and Hose Hangers
  • • Durable Hi-Gloss Powder Coated Automotive Quailty Paint Finish
  • • Four Wheel Flat Free Solid Micro Poly Tire Assembles
  • • Chrome Mag Wheels
  • • Patented AaLadin Exchange Technology
  • • Exclusive Highly Efficient Combustion Chamber Design
  • • Stainless Steel Combustion Chamber
  • • Quick Coil Access
  • • Heating Coil Constructed of ASTM A53 Schedule 80 Steel Pipe
  • • Vertically Fired Heat Chamber
  • • Pressure Atomized Burner
  • • Automatic Electric Burner Ignition
  • • Water Separating Fuel Filter
  • • Stainless Steel Control Panel
  • • Hour Meter with Break-In and Oil Change Alerts
  • • High Limit Temperatures Shutoff
  • • Low Water Shut Off Protection
  • • Pressure Relief Valve
  • • Triplex Ceramic Plunger Belt Driven Pump
  • • Vanguard or Honda Engine w/Electric Start
  • • Quick Coupled Stainless Steel Nozzles
  • • Downstream Chemical Injection
  • • Wire Braid Discharge Hose
  • • Low Engine Oil Protection
  • • Shock Mount Plastic Battery Box
  • • Removable Engine Fuel Tank
  • • Trigger Gun Control
  • • 18 Amp Charging System
  • • Electric Start
  • • Extended Engine Oil Drain
  •   Model 41-530B 41-530B-C
      Flow Output (GPM)  5  5
      Pressure Ratings (PSI)  3000  3000
      Cleaning Comparison Index  24,807  24,807
      Engine Horsepower  16  16
      Engine Pump Drive  BELT  BELT
      Engine Fuel  GAS  GAS
      Capacity in US Gallons  5.75  5.75
      Operating Fuel  OIL  OIL
      Input BTU's  280,000  280,000
      Fuel Consumption (GPH)  .99  .99
      Burner Fuel Capacity  5.75  5.75
      Burner Voltage  12V  12V
      Stack  EXCHANGE  EXCHANGE
      Discharge Hose  3/8" x 50'  3/8" x 50'
      Length  47"  47"
      Width  32"  32"
      Height  37"  37"
      Approximate Weight (lbs)  600  610

    (1) Cleaning Comparison Index - This index is used in the comparison of pressure washing equipment by taking into account the cleaning effects of water pressure, flow, and temperature on cleaning time.  The Larger the cleaning comparison idex, the faster the pressure washer will clean.

    (2) Fuel Consumption considers an operating duty cycle of 60%.
