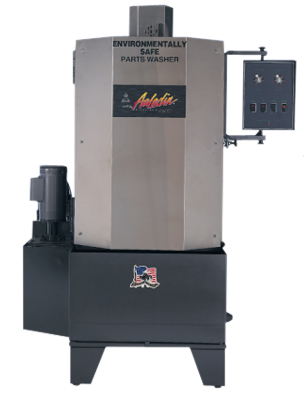

Model 2085 &  2085TE

Features Include:

  • Dual zone quick service filters with slide out fine debris screen and small debris catch basket
  • 85 gallon water capacity
  • 3hp seal-less pump
  • 230 volt 3 phase
  • 10kw heater (230v 1ph or 3ph)
  • 10 gauge steel
  • S.S. air shield (door cover)
  • Seal-less ez-load door
  • Steel oil skimmer
  • Dry-floor (waste water) evaporator
  • Power vent
  • Small parts soaking system
  • Large removable basket
  • 1,500 lb. load capacity
  • 41" load height
  • 28" turn table
  • 72-0 degree spray jets
  • 45" L x 61" W x 87" H
  • 1120 lbs. shipping weight
  • ETL & C-ETL Listed
  Model2085E2085TE
  Water Capacity (Gallons)  85  85
  Electrical - Motor  3HP  5HP
  Electrical - Voltage  230°  230°
  Electrical - Phase  1  3
  Heaters - 230V 1 PH  STD  OPT
  Heaters - Kilowatts  10KW  10KW
  Heaters - Fused for AMP Draw  60  60
  230V 3PH  OPT  STD
  Kilowatts  12KW  12KW
  Fused for AMP Draw  40  40
  480V 3PH  OPT  OPT
  Kilowatts  12KW  12KW
  Fused for AMP Draw  25  25
  Why Worry About It  OPT  OPT
  Gauge Steel  10  10
  Stainless Steel Air Shield  STD  STD
  Seal-less Door  STD  STD
  Oil Skimmer  STD  STD
  Dry Floor Waste Water  STD  STD
  Disposal System Large Basket  STD  STD
  NG / LP (Not ETL & CETL Listed)  OPT  OPT
  Load Capacity (Pounds)  1,500  1,500
  Load Height (Inches)  41"  51"
  Turntable Diameter (Inches)  28"  28"
  Number of 0° Spray Jets  72  85
  Length (Inches)  42"  42"
  Width (Inches)  61"  61"
  Height (Inches)  89"  97"
  Shipping Weight (Pounds)  1120  1250

(1) Cleaning Comparison Index - This index is used in the comparison of pressure washing equipment by taking into account the cleaning effects of water pressure, flow, and temperature on cleaning time.  The Larger the cleaning comparison idex, the faster the pressure washer will clean.

(2) Fuel Consumption considers an operating duty cycle of 60%.
