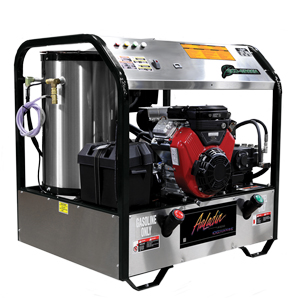

42 Series HE Models

Skid



  • 42 Series Features:
  • • Roll Cage Frame
  • • Durable Hi-Gloss Powder Coated Automotive Quailty Paint Finish
  • • Patented AaLadin Exchange Technology
  • • Exclusive Highly Efficient Combustion Chamber Design
  • • Stainless Steel Combustion Chamber
  • • Quick Coil Access
  • • Heating Coil Constructed of ASTM A53 Schedule 80 Steel Pipe
  • • Vertically Fired Heat Chamber
  • • Pressure Atomized Burner
  • • Automatic Electric Burner Ignition
  • • Water Separating Fuel Filter
  • • Stainless Steel Control Panel
  • • Hour Meter with Break-In and Oil Change Alerts
  • • High Limit Temperatures Shutoff
  • • Low Water Shut Off Protection
  • • Shock Absorbing Engine Base
  • • Pressure Relief Valve
  • • Triplex Ceramic Plunger Belt Driven Pump
  • • Vanguard or Honda Engine w/Electric Start
  • • Extended Engine Oil Drain
  • • Low Engine Oil Protection (Vanguard)
  • • Shock Mount Plastic Battery Box
  • • Removable Poly Gasoline Tank
  • • Trigger Gun
  • • Quick Coupled Stainless Steel Nozzles
  • • Downstream Injection
  • • Wire Braid Discharge Hose
  •  Factory Installed Options:
  • Clutch Drive
  • Stainless Steel Float Tank/High Pressure Soap
  • Generator
  •  Dealer Installed Options:
  • Stainless Steel Float Tank/High Pressure Soap
  • Four Wheel Kit
  • Van Hood
  Model 41-530B 41-530B-C
  Flow Output (GPM)  5  5
  Pressure Ratings (PSI)  3000  3000
  Cleaning Comparison Index  24,807  24,807
  Engine Horsepower  16  16
  Engine Pump Drive  BELT  BELT
  Engine Fuel  GAS  GAS
  Capacity in US Gallons  5.75  5.75
  Operating Fuel  OIL  OIL
  Input BTU's  280,000  280,000
  Fuel Consumption (GPH)  .99  .99
  Burner Fuel Capacity  5.75  5.75
  Burner Voltage  12V  12V
  Stack  EXCHANGE  EXCHANGE
  Discharge Hose  3/8" x 50'  3/8" x 50'
  Length  47"  47"
  Width  32"  32"
  Height  37"  37"
  Approximate Weight (lbs)  600  610

(1) Cleaning Comparison Index - This index is used in the comparison of pressure washing equipment by taking into account the cleaning effects of water pressure, flow, and temperature on cleaning time.  The Larger the cleaning comparison idex, the faster the pressure washer will clean.

(2) Fuel Consumption considers an operating duty cycle of 60%.
