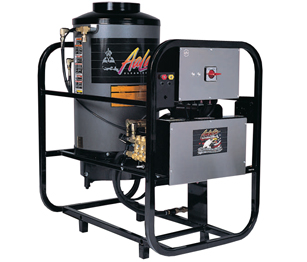

16 Series - ES Model

Stationary or Portable Pressure Washers

Standard Features Include:

  • 115 Volt 1 Phase (16-310 ES)
  • 230 Volt 1 Phase (16-325ES / 16-423ES /
    16-430 ES / 16-525 ES)
  • Heavy Duty Tubular Steel Frame
  • Durable Hi-Gloss Powder Coated Paint
  • Ground Spacing Legs with foot Pads
  • Painted Combustion chamber Wrapper
  • Fuel Efficient Combustion Chamber
  • Standing Pilot
  • Quick Coil Access
  • Exclusive Chamber Insulation System
  • Heating Coil constructed of ASTM A53 Schedule 80 Steel Pipe
  • Heavy Duty Electro Plated fittings
  • High Limit Temperature Control
  • Pressure Relief Valve
  • Belt Driven Pump
  • Industrial Strength Electric Motors
  • Insulated Wand with 4000 PSI Trigger Gun
  • Trigger Gun Control
  • 0° and 15° Quick Coupled Stainless Steel Nozzles
  • 3/8" x 50" High Pressure Hose Assembly with Safety Hose Guards
  • Wire Braid Discharge Hose
  • Low Water Shut-Off Protection
  • Watertight Electrical Panel
  • Draft Diverter


Options for ES Models:

  • Four Wheel Kit (K16-0001)
  • Propane Tank Bracket (K16-0002)
  • Soap Solenoid
  Model16-31016-325 16-423 16-430 16-525
  Flow Output (GPM)  3  3  4  4  5
  Pressure Ratings (PSI)  1000  2500  2300  3000 2500
  Max Output Temperature  210°  210°  210°  210°  210°
  Cleaning Comparison Index  8960  12672  18119  20693  22613
  Motor Horsepower  2.3  5  6  8  8
  Volt  115  230  230  230  230
  Amp  20  20  30  40  40
  Phase  1  1  1  1  1
  Input BTU's  256,000  256,000  332,000  332,000  352,000
  Fuel Consumption (GPH)  9.52  9.52  12.35  12.35  13.09
  Burner Fuel Tank Capacity  7.4  7.4  7.4  10.4  10.4
  Stack Size  8"  8"  10"  10"  10"
  Length  39"  39"  39"  39"  39"
  Width  26"  26"  26"  26"  26"
  Height  46"  46"  46"  46"  46"
  Approximate Weight (LBS)  430  445  630  650  670

(1) Cleaning Comparison Index - This index is used in the comparison of pressure washing equipment by taking into account the cleaning effects of water pressure, flow, and temperature on cleaning time.  The Larger the cleaning comparison idex, the faster the pressure washer will clean.

(2) Fuel Consumption considers an operating duty cycle of 60%.
